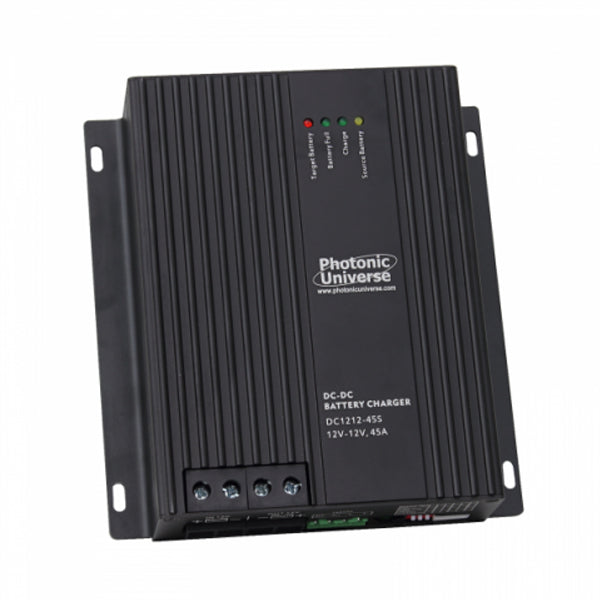

PHOTONIC - 45A 12V DC to 12V DC Compact Automatic Multi-stage Battery-to-battery Charger for Lead Acid and Lithium Batteries
£133.66 GBP
This powerful 45A compact DC-DC Battery Charger is fully automatic and ideal for leisure vehicles, commercial and special purpose vehicles, boats, and any other systems with multiple 12V batteries or power sources. The charger operates using an adjustable three-stage charging programme and is suitable for Lead Acid, AGM, Gel, LiFePO4, and Lithium-ion (NCM) batteries. The product is compact, lightweight and features high frequency switching and buck-boost power conversion technology for reliable, consistent performance.
Specifications:
- Source battery voltage: 12V
- Battery input voltage: 10.5V - 16V
- Effective D+ signal voltage range: 8V - 16V
- Maximum charging power: 585W
- Maximum charging current of target battery: 45A
- Minimum recommended source battery capacity: 60Ah
- Target rated voltage: 12V (Lead acid, AGM, GEL), 12.8V (LiFePO4), 11.1V (Li-ion)
- Target battery capacity: 80Ah - 400Ah
- Target battery operating voltage range: 8V - 16V
- Bulk charge voltage: 14.7V (AGM), 14.3V (GEL) 14.4V (Lead Acid), 14.4V (LiFePO4), 12.6V (Li-ion)
- Float charge voltage: 13.5V (AGM), 13.8V (GEL) 13.5V (Lead Acid), 13.8V (LiFePO4), 12.5V (Li-ion)
- Temperature compensation: -3mV/°C/2V
- Operating temperature: -20°C to 50°C
- Self-consumption current: 17mA
- Weight: 0.72kg
- Dimensions: 147 x 156 x 41mm
